Specifics:
Condition: 100% Brand New
Surface: Mirror Polish
Features: Polished
Color: Sliver
Fitment Type: Performance/Custom
Material: Stainless Steel
Placement on Vehicle: Front
Pipe Thickness: 16-gauge (1.5mm)

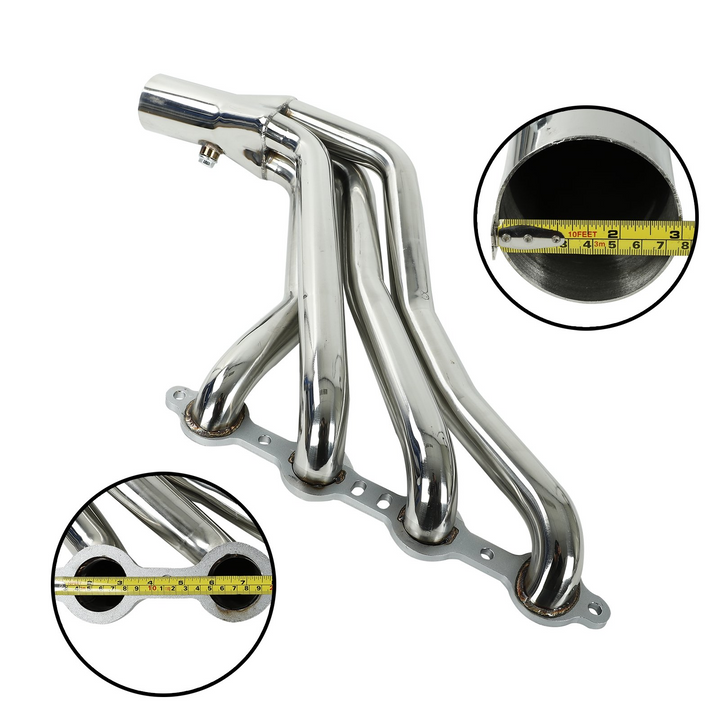

Primary Diameter: 1-3/4" (45mm)
Collector Diameter: 3" (76mm)
Head Flange Thickness 3/8" (9.5mm)
Fitment:
For Chevy For GMC trucks (2WD) LS motor swap on 1960-1998
For LS based engines (LS1, LS2, LS3, LS6, LS7, etc.)
Note:
1. Doesn't fit LS4 engines
2. Doesn't fit 4WD/4x4 models
3. Doesn't fit standard SBC or BBC
4. Doesn't fit install with factory column shift linkage
5. May require special motor mounts for clearance
6. May require angled spark plug boots for tight clearance
7. If using larger 4L80E or older THM 350/400 automatic transmissions the bellhousing ears may need to be trimmed for proper clearance
Package included:

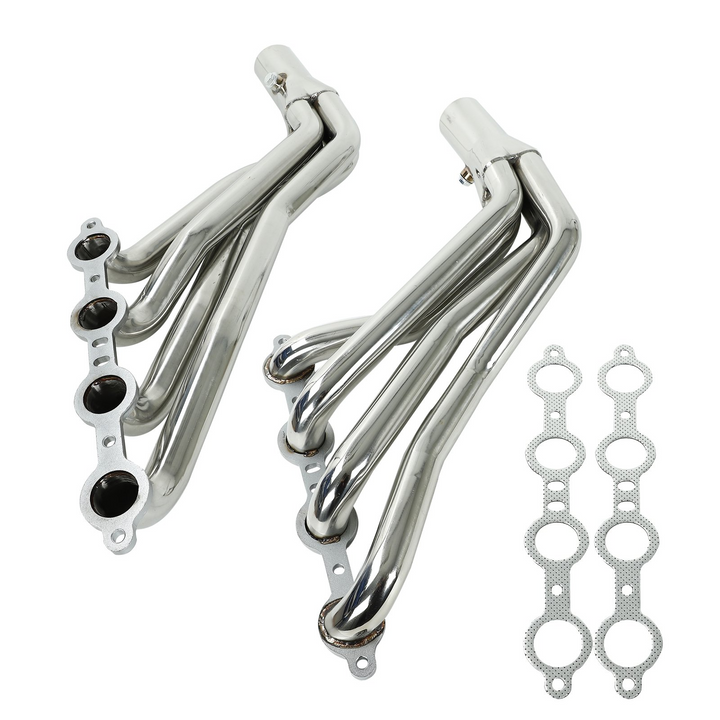

1 * Exhaust Header Kit
Feature/About this item
1. When upgrading your engine, begin by replacing the exhaust manifold. Cylinder exhaust flows into the manifold (an engine component), then travels through the exhaust pipe, muffler or silencers, and exits via the tailpipe. Our high-performance stainless steel manifold replaces the restrictive factory version, enhancing exhaust flow and significantly increasing power and torque across the entire RPM range.
2. Exhaust headers are metal tubes that connect the engine’s cylinder head to the exhaust system, efficiently directing exhaust gases away from the engine. They attach to the cylinder head using a flange and merge into a larger collector, which connects to the rest of the exhaust system via bolts or welding.
3. Crafted from CNC-machined T-304 stainless steel pipes and precision TIG-welded flanges, these headers are built for exceptional strength and durability.
4. Designed for hassle-free installation, the headers feature pre-welded hangers for a direct bolt-on fit—no modifications needed.
Shipping (UNITED STATES):
Handling Time: within 24 hours
Shipping Time: 3-5 days
Tracking info will be emailed to you once the order has been shipped. Shipping will take 3-5 days.
Free 60-day returns and 1-year warranty.
We believe our products can help people's everyday lives, and we fully stand by our products. We offer a risk-free 60-day guarantee on all our products. If you don't have a great experience, we will ensure you are satisfied with your purchase. We also offer a 1-year free breakdown warranty on our products.
Note:
– Make sure to review the details carefully before making your purchase.
– For best results, professional installation or advice is strongly advised if you encounter any issues.
– Please note that due to variations in lighting and screen settings, the actual color may differ slightly from the image.
– Allow for minor size variations due to differences in manual measurements.
